CL804U——Ultrasonic testing

Make the most of our robot with the Ultrasonic Thickness Tester (UTT) Payload. This high-end tool can be mounted in front of the robot and will take you less than five minutes to install or remove.

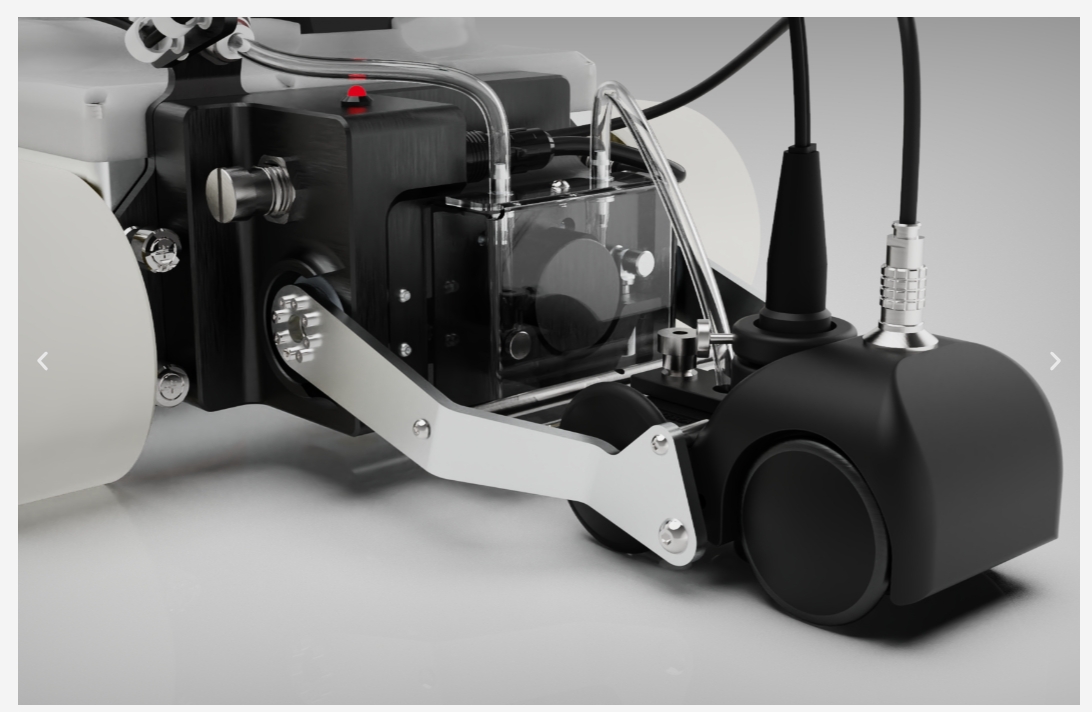

Our UTT payload consists of a probe transducer, encoder buggy, lifting mechanism, and an onboard couplant pump. It has never been so easy to achieve

an accurate thickness measurement. The probe and encoder buggy can be raised between measurements to minimize wear and tear of the transducer. The water (or water/gel mix) is routed to the probe head to link the ultrasonic transmission. These cables are combined with our UTT umbilical cable. Equipment and procedure standards are our top priority. That’s why we use a high-end Olympus D790-SM probe as a standard transducer. Its dual element pitch-catch probe creates a V-shaped sound path. One element acts as sender and the second as receiver in the test material. This improves near surface resolution and is ideal for remaining wall thickness measurements. Even on curved or rough surfaces. The probe is perpendicular to the surface due to the attitude of the encoder buggy.

  Scanner

Designed to carry Olympus b-scan buggy
Localised couplant flow control for regulated fluid delivery
Ethernet and 12 Volt supply via robot payload connector
Dual Servo driven Raise / lower with dynamic spring action
Precision distance measurement via b-scan buggy encoder
Automated linear scan functionality
Automated report logging
A-scan data available (via Olympus 38dl+)
